The University of Virginia: A Case Study



Overview

LOCATION: CHARLOTTESVILLE, VA

 CLIENT: ColonialWebb



ColonialWebb, one of the largest installers of mechanical systems in our region, was hired to add new HVAC systems to the freshman dormatories, often referred to as the "Old Dorms," at the University of Virginia.  Successful installation of the new systems was dependent on accurate as-built documents that delineated the space available for new ductwork, piping and air handling units. ColonialWebb engaged Prologue Systems to scan 70,000 square feet of dorm attic space and deliver 3D architectural models of the rafters and other structural features.

PROBLEM

The contractor had drawings for the attics, but spot checking and anecdotal hand measurements raised some concerns about the accuracy of the existing plans. Furthermore, existing framing systems and low ceilings resulted in space being extremely limited.  Any deviations from the final permit drawings would have required expensive and timely rework.



SOLUTION

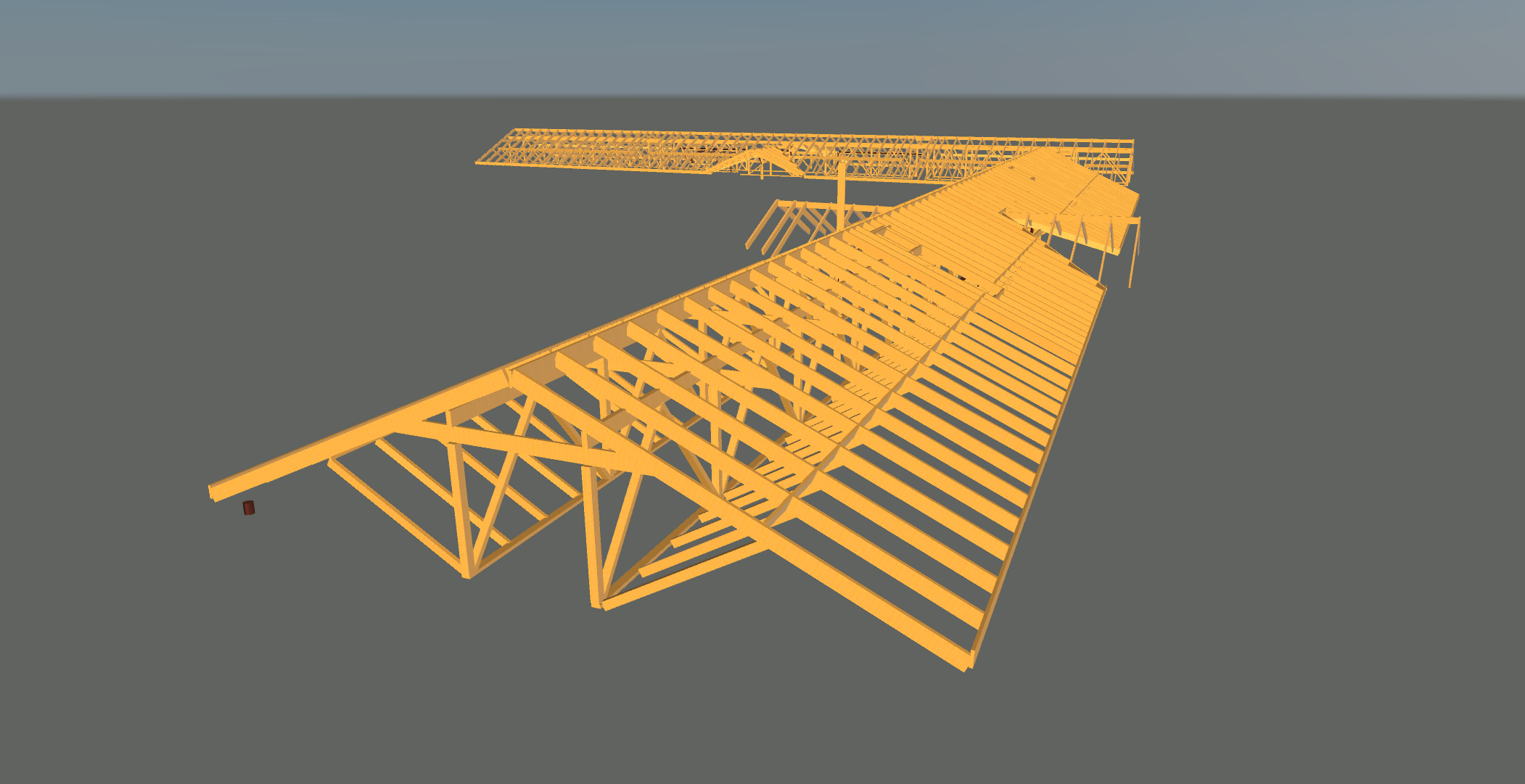

Prologue collected millions of accurate measurements in the tightly confined spaces of the attic dorms built in 1950. These measurements accurately depicted the layout of the attics and were used to generate 3D models. Based on the 3D models created by Prologue, ColonialWebb has a comprehensive understanding of the attic layouts so they can install new HVAC systems efficiently.





“When compared to the contract drawing files, the existing structure varied significantly. Had we not scanned the attics prior to coordinating the work, we would have been exposed to several areas of conflict which could have been costly to the customer.”
— Ian Handley, Project Manager






BENEFITS

The client received accurate, as-built, models in a reasonable time for a reasonable fee.  With the 3D models created by Prologue, ColonialWebb has a comprehensive understanding of the attic layouts and can install new HVAC systems efficiently and without conflict, thus saving money on fees.  Prologue also assisted the contractor with coordinating AutoCAD drawings, Revit models and Navisworks visualizations.





SERVICES USED:

•  Interior 3D laser scanning at various levels of resolution
• 3D compiled point cloud
• Revit modeling
• AutoCAD drawings
• Navisworks visualizations

TIMELINE

One to two days on site for each building
• One to two days to compare point clouds to existing models
• Three to four days to complete the new attic-framing model
